Low/Medium Intensity Portable Lights V2
Low-Medium-Intensity portable lights for airports battery-powered
POLARIS V2 is a range of lights more compact, designed as portable lights for any type of airports. The light distribution and colorimetry are as per ICAO Annex 14 standards. The fixtures are durable, and weather-resistant, to ensure visibility while minimizing interference with aircraft operations.
The range includes the following products:
AL-146-03-GR- Threshold Wing – THR-W – 3000 cd

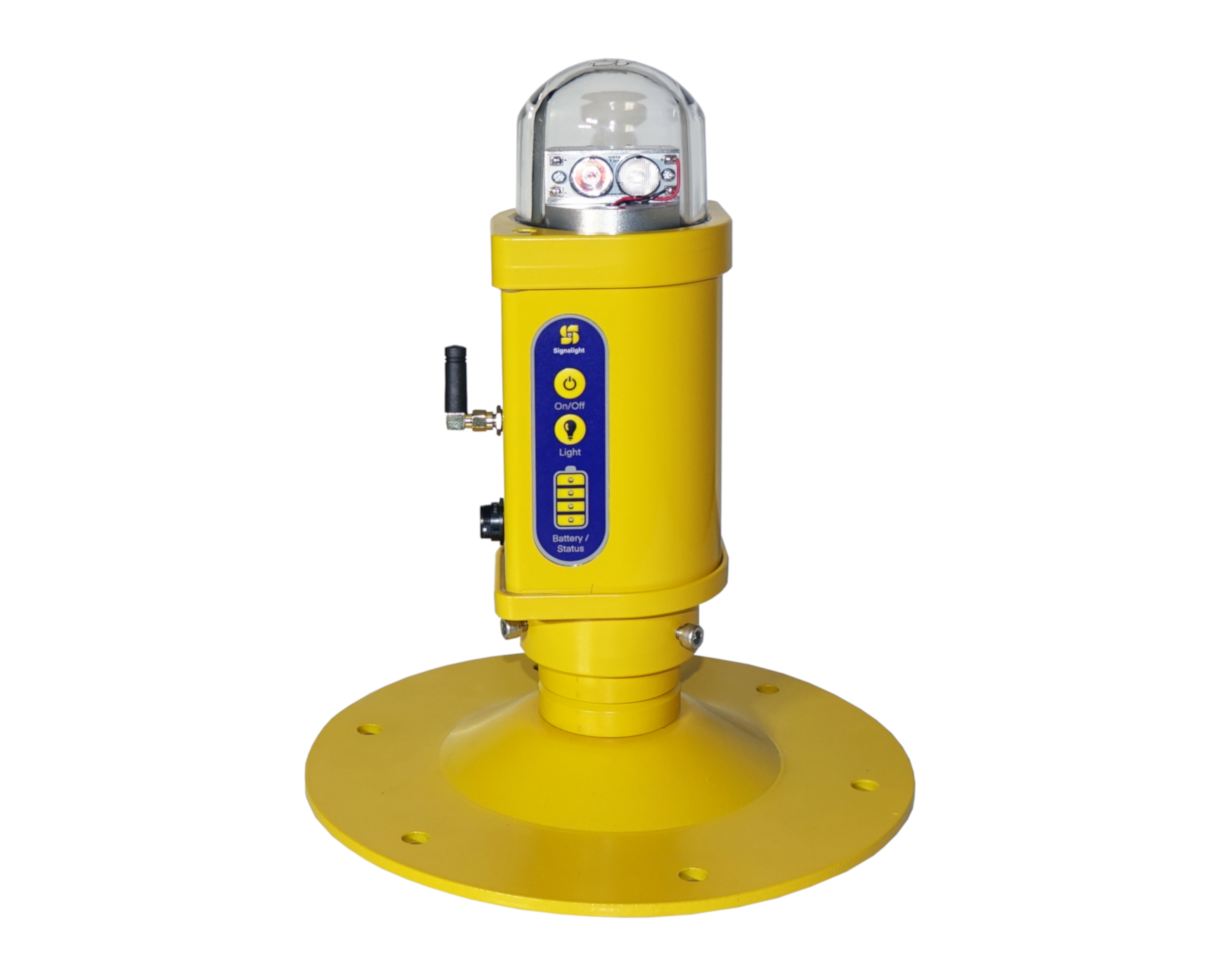

AL-144-02-RE – Runway End – END – 750 cd
AL-160-03-WH – Approach – APH – 3000 cd
AL-148-06-WH – Runway Edge Lights – REL – 3000 cd

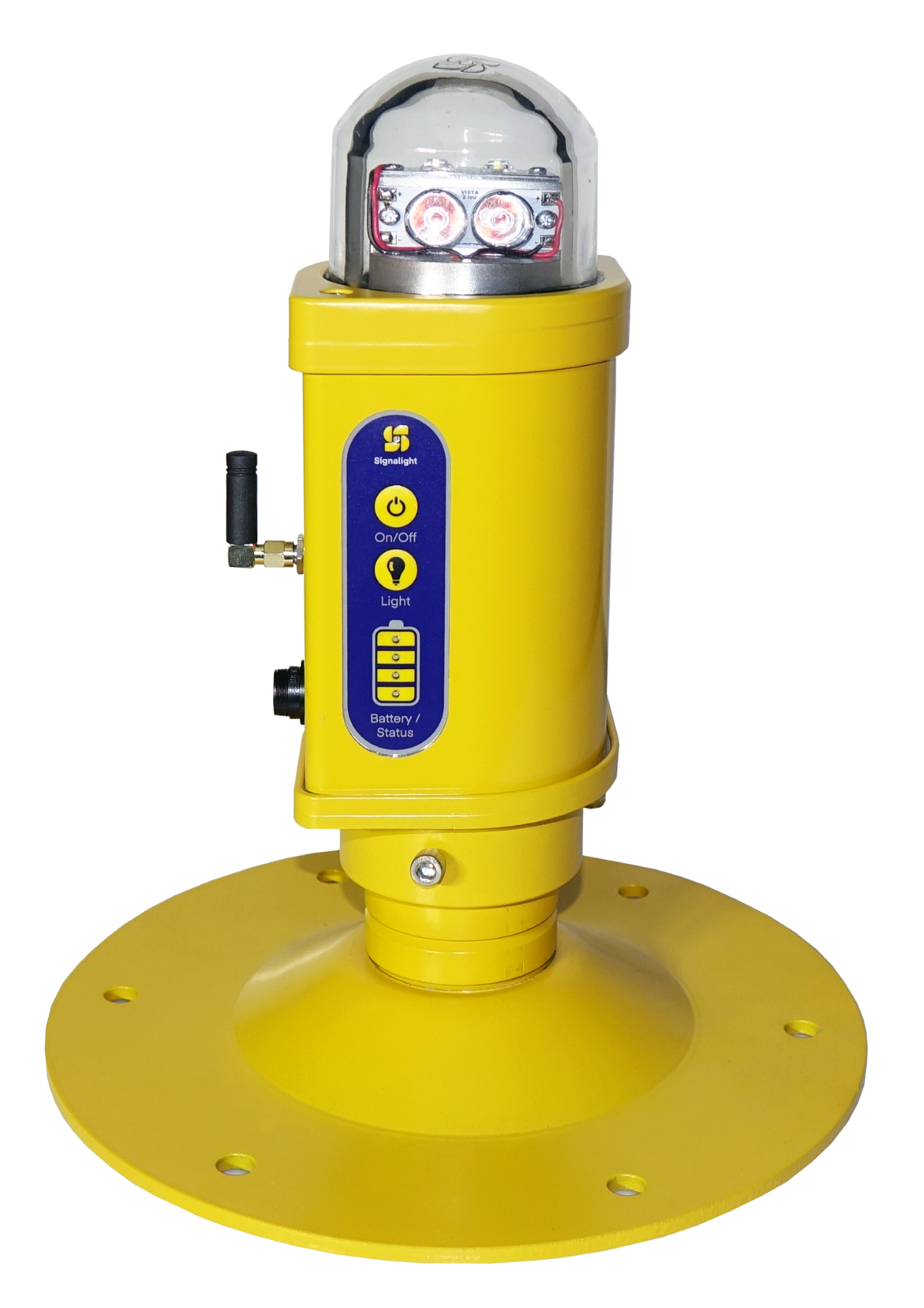

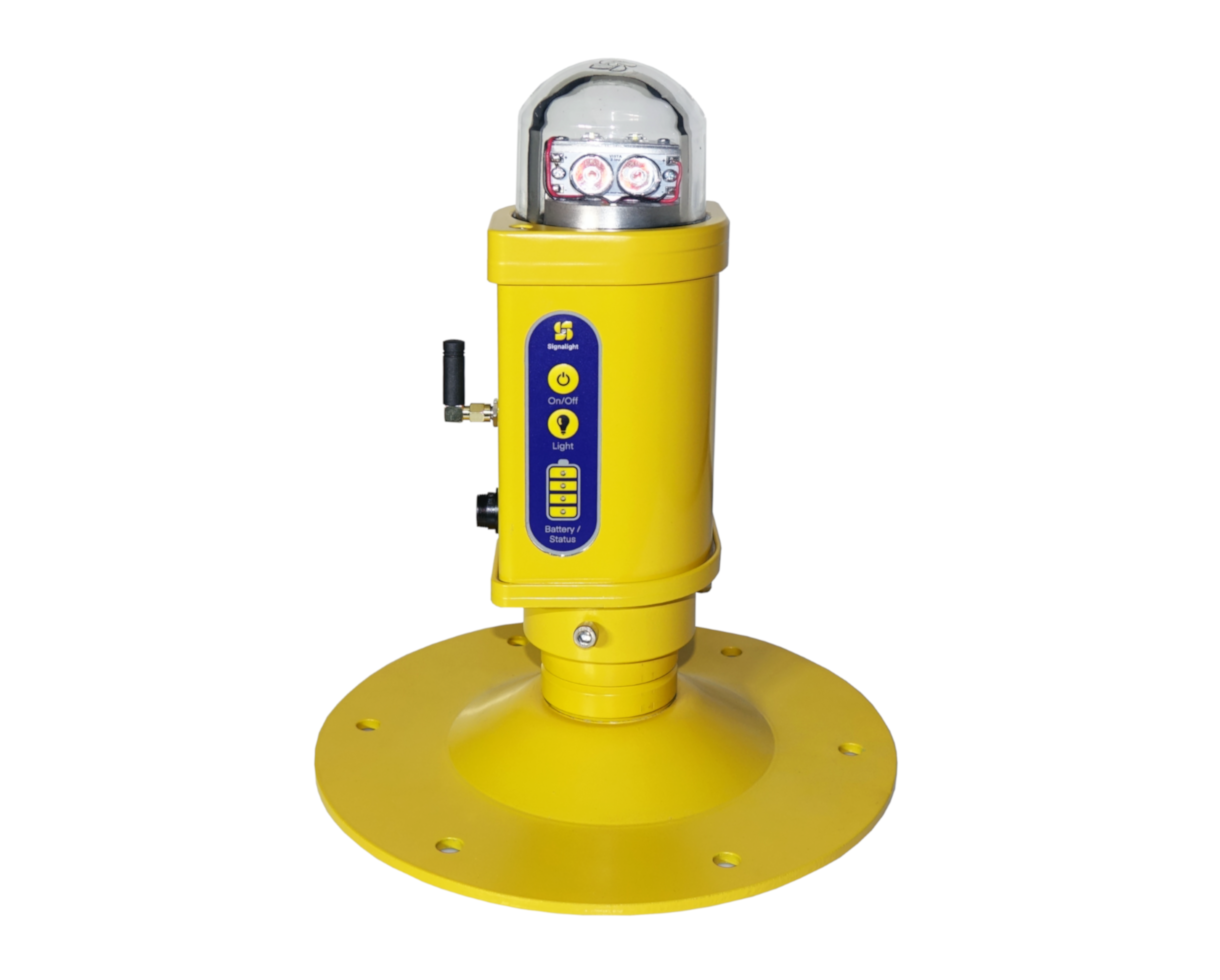

AL-145-04-GR-RE – Threshold End – THR-END – 3000 cd – 750 cd
AL-147-01-BL – Taxiway Light – TEL – 2 cd
| Category | Portable Lighting Polaris for Airports |
| Product Code | AL-148-06-WH - Runway Edge Lights - REL |
Construction
- Case material: aluminum
- Case color: aviation yellow (RAL 1004) powder coating
- Stainless steel fastening elements
- Diffuser: glass
- Battery type: NiMh
Optical
- Light source – high-intensity LEDs with specially designed lenses
- high intensity according to ICAO annex 14, Vol. 1
- optional IR LEDs can be used for NVG compatibility
- there are three beams of light, two of them directional and one omnidirectional for circling. The omnidirectional runway edge lights can be beneficial during a circling approach maneuver.
Electrical specifications
- very low power consumption
- NiMh battery pack 12 V, 2,7 Ah
Control
- Manual control from the switches on the lamps
- radio control using handheld remote control
- radio control using the base station and POLARIS application
Sensors
- temperature sensor
- GPS
- current and voltage measurement for LEDs
- Battery voltage
- Charging current
- Ambient light sensor
Radio control
- using LORA technology
- 868 MHz for Europe
- 915 MHz for the USA
- direct communication
- coverage – 10 km in direct site of view
Environment
- IP 68 – all lamps are equipped with pressure valves for testing
- anti-condensation breathing valve
- temperature range from -20 to +55 Celsius degrees
- materials resisting the corrosive effects of a saline environment
Charging
- in charger racks
- from solar for permanent or semi-permanent installations
Low/Medium Intensity Portable Lights V2 Accessories
Φ260mm Base Plate
AL-102-AX
Download Low/Medium Intensity Portable Lights V2 datasheet
| Datasheet Polaris Runway Edge Low medium intensity V2 | PDF 773 KB Download PDF |
| Datasheet Polaris Runway End Low medium intensity V2 | PDF 837 KB Download PDF |
| Datasheet Polaris Threshold End Low medium intensity V2 | PDF 864 KB Download PDF |
| Datasheet Polaris Threshold Wing Low medium intensity V2 | PDF 844 KB Download PDF |
| Datasheet Polaris Approach Low medium intensity V2 | PDF 872 KB Download PDF |
| Datasheet Polaris Taxiway Light V2 | PDF 802 KB Download PDF |
