Glide Path Indicator

Compliance to NATO Stanag 1236

Certified According to Standards:

  • IEC TS 61827: Electrical installations for lighting and beaconing of aerodromes.
  • Characteristics of inset and elevated luminaries used on aerodromes and heliports.

The GPI allows to give luminous information to the pilot for the night landing with an helicopter in severe operating conditions where the use of standard fixed equipment is not possible.

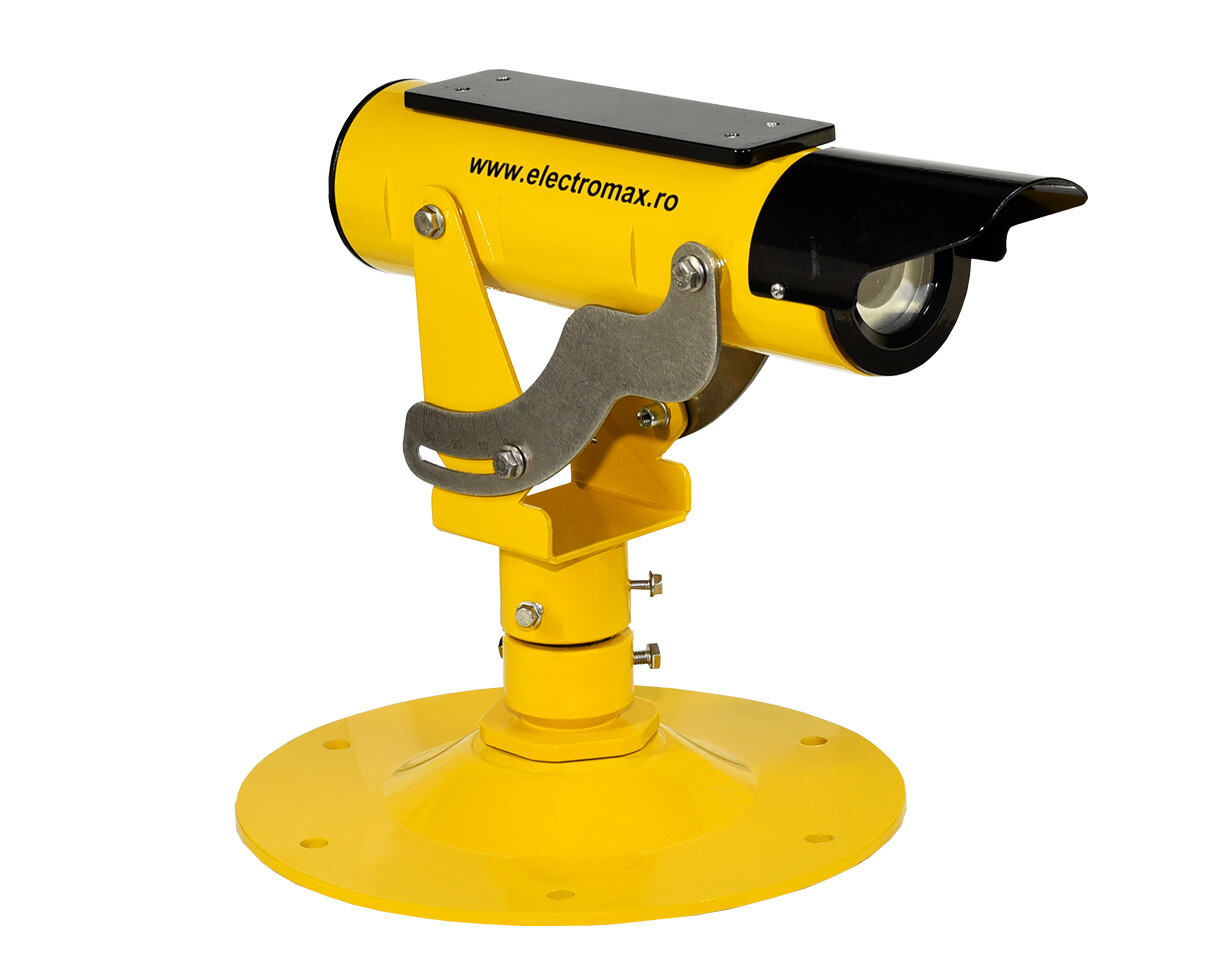

The GPI mainly consists of a compact projector, that emits on the vertical plane a trichromatic light beam, as shown in the graphical representation.

Category ,
Product Code AL-084-01-YE-GR-RE
Add to my list Share this page
Add to my list

Description

  • Housing – powder-coated aluminium, RAL 1004 (aviation yellow)
  • Anti glare visor – powder-coated aluminium, RAL 9005 (black)
  • Diffuser – 5mm clear glass
  • Cable gland – nickel-plated brass
  • Fastening system – powder-coated aluminium, RAL 1004 (aviation yellow)
  • Fasteners – stainless steel

Electrical Characteristics

  • Power consumption: 5W
  • Power supply: 90-230V, 50/60Hz

Glide Path Indicator Accessories

Download Glide Path Indicator datasheet

Datasheet PDF 389 KB Download PDF
