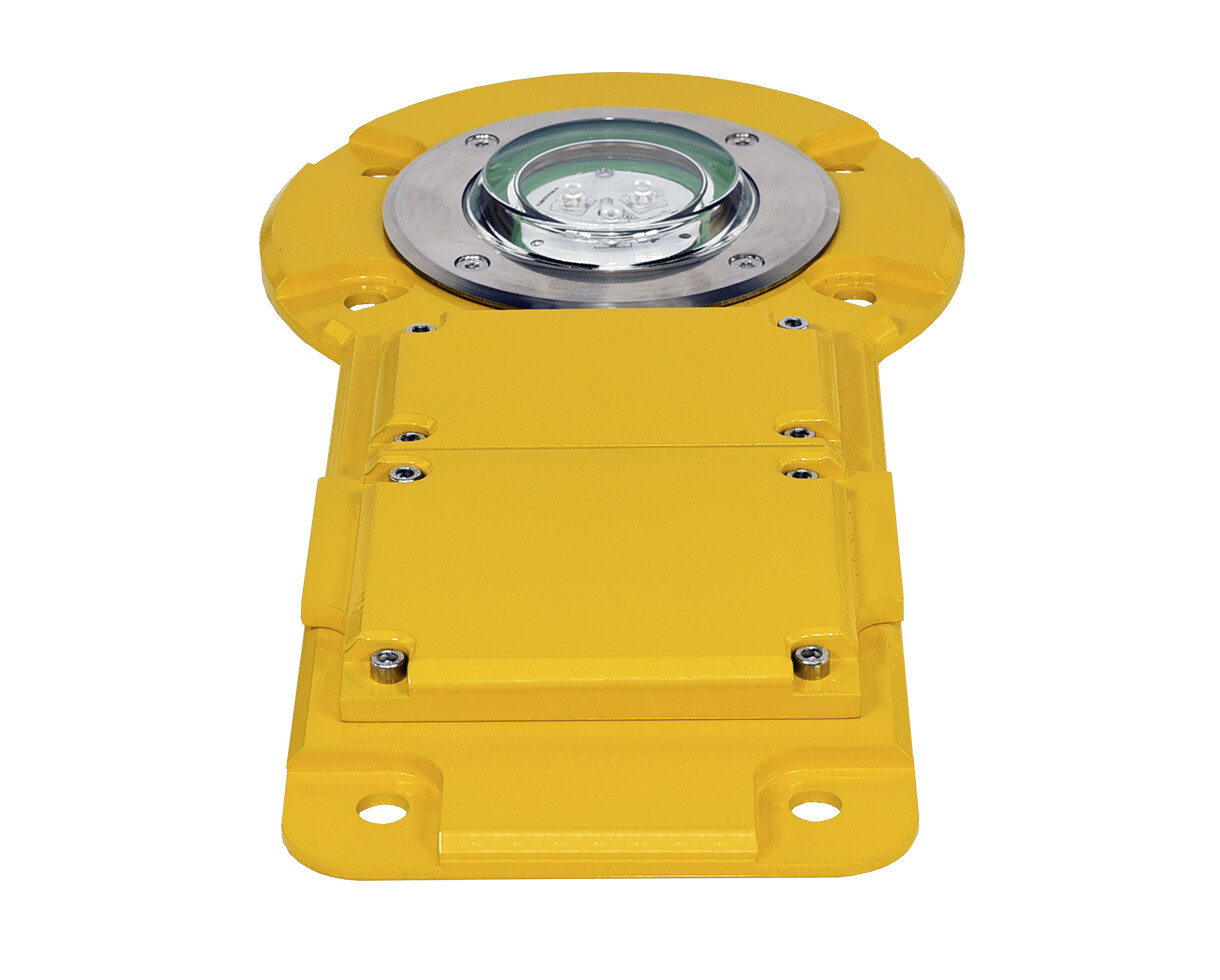

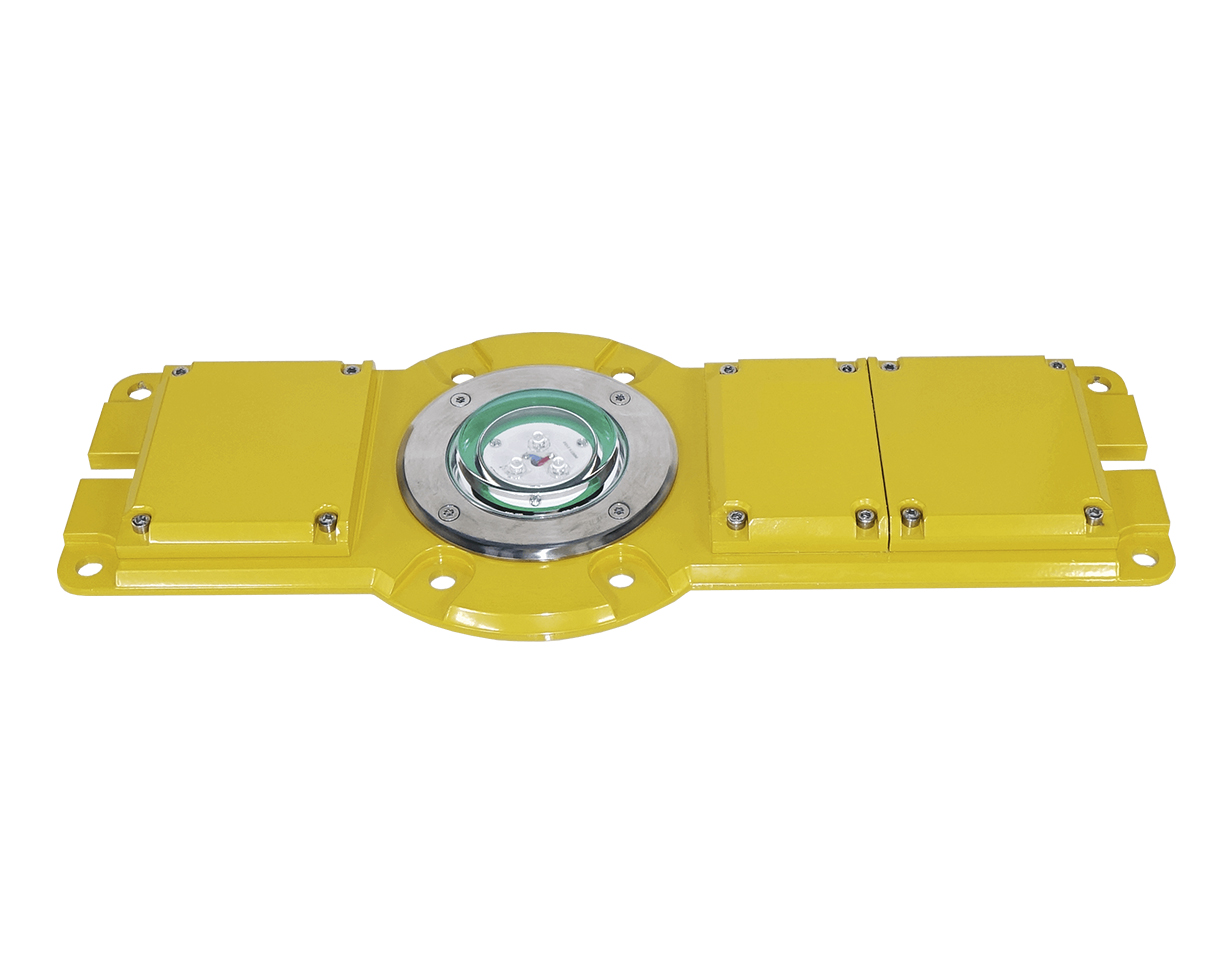

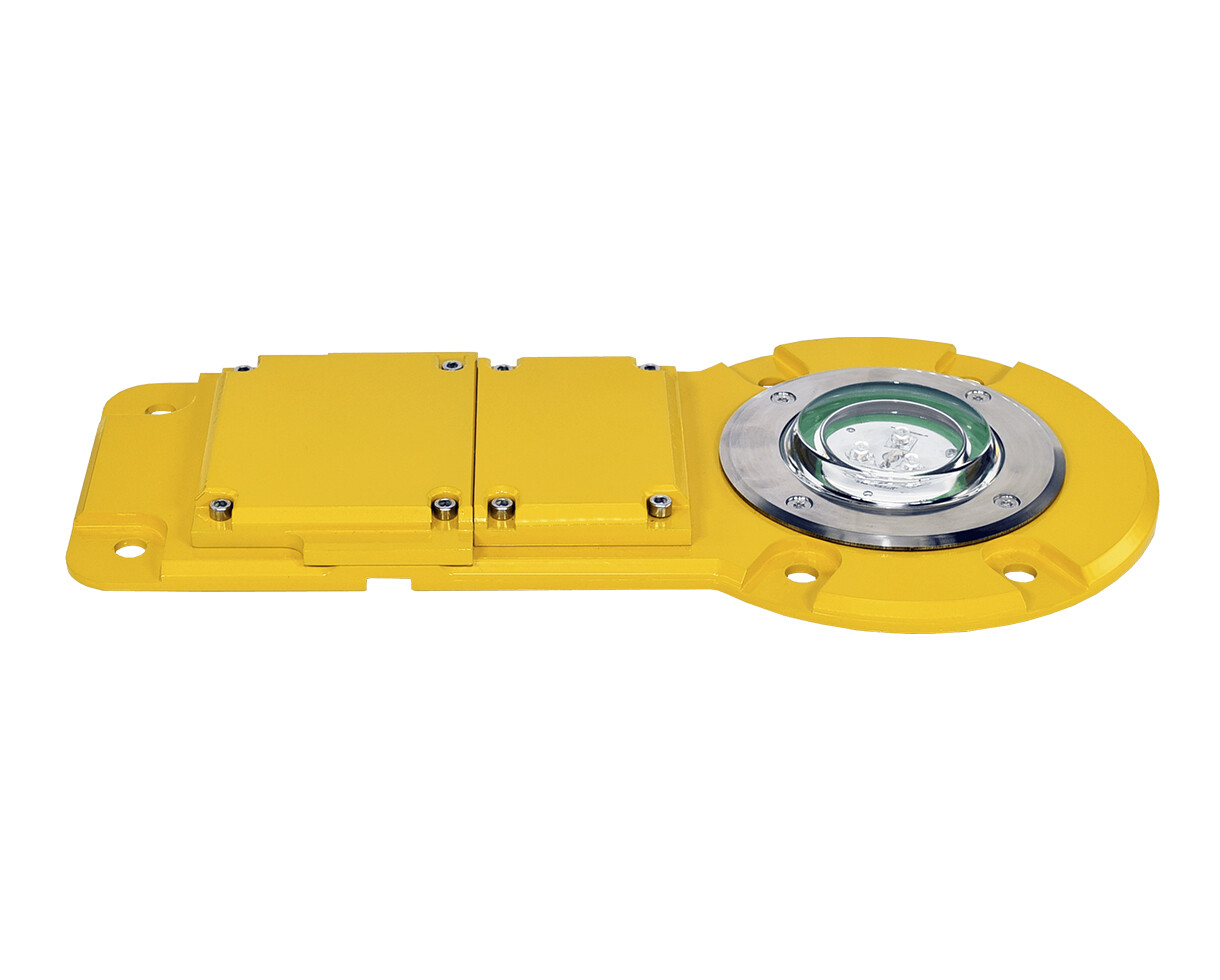

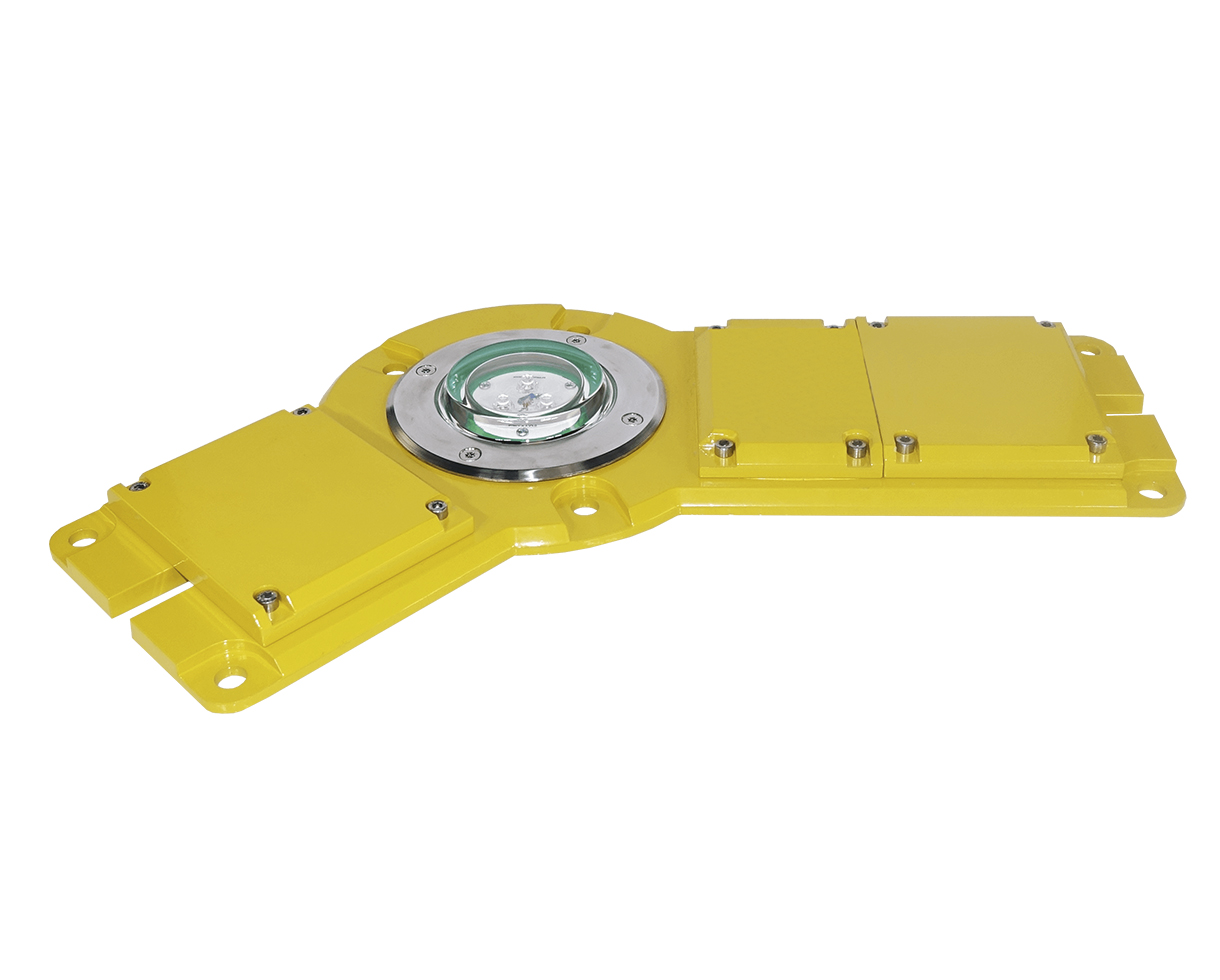

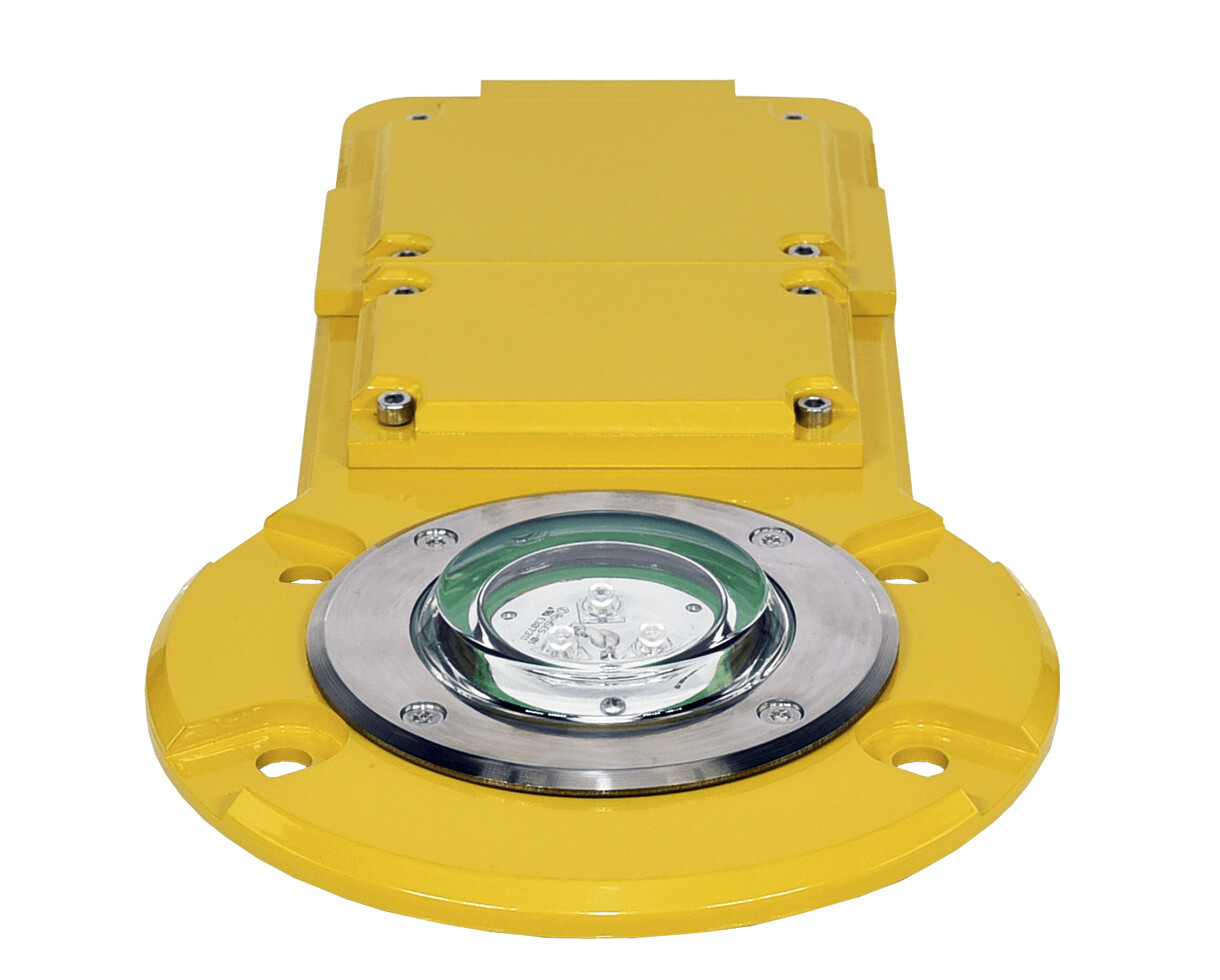

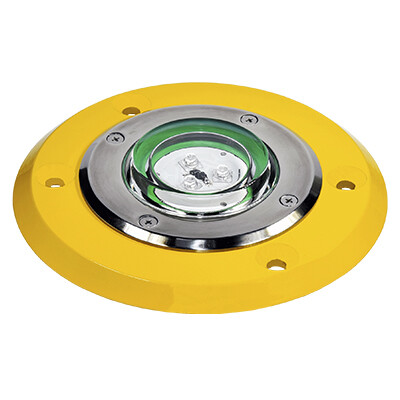

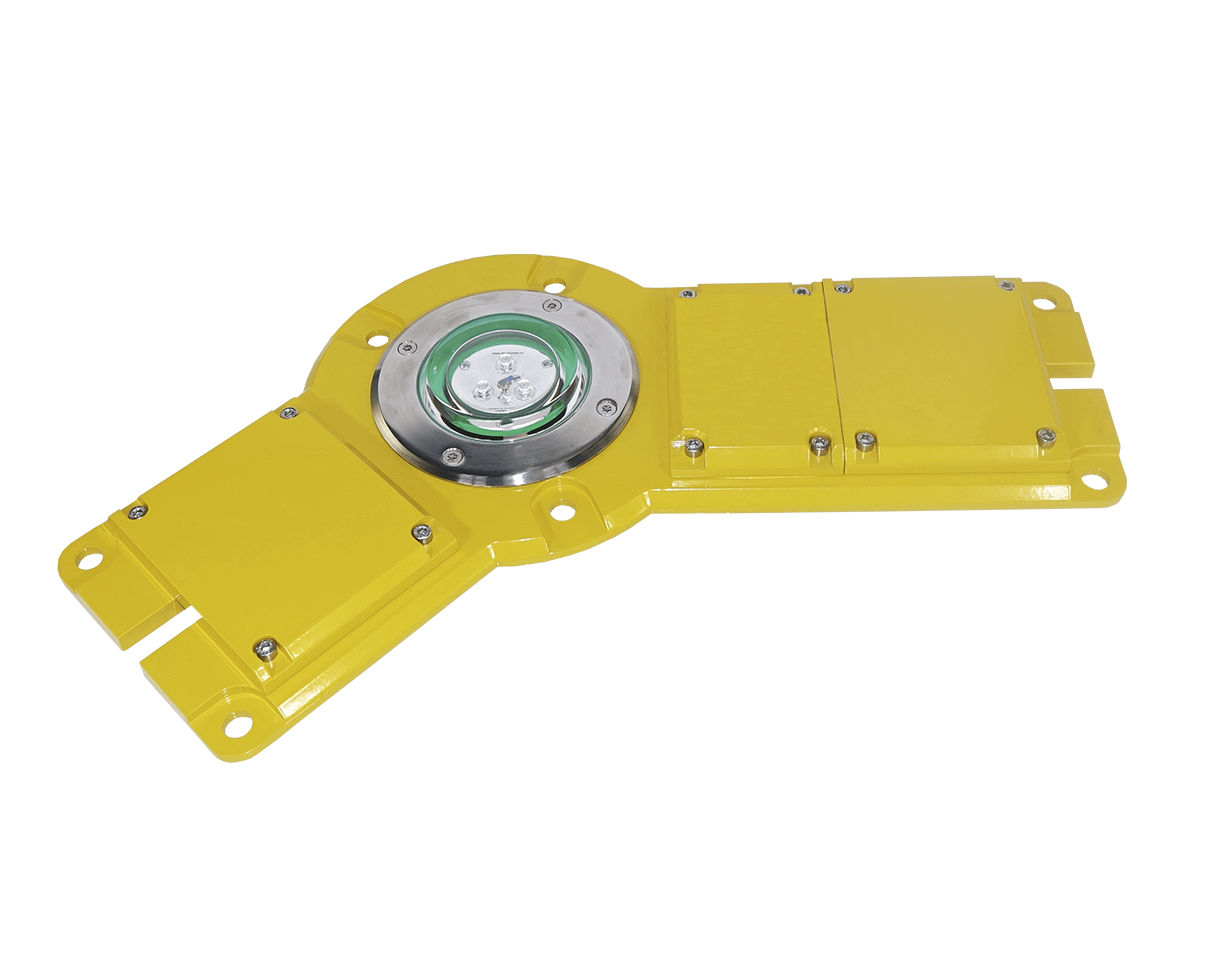

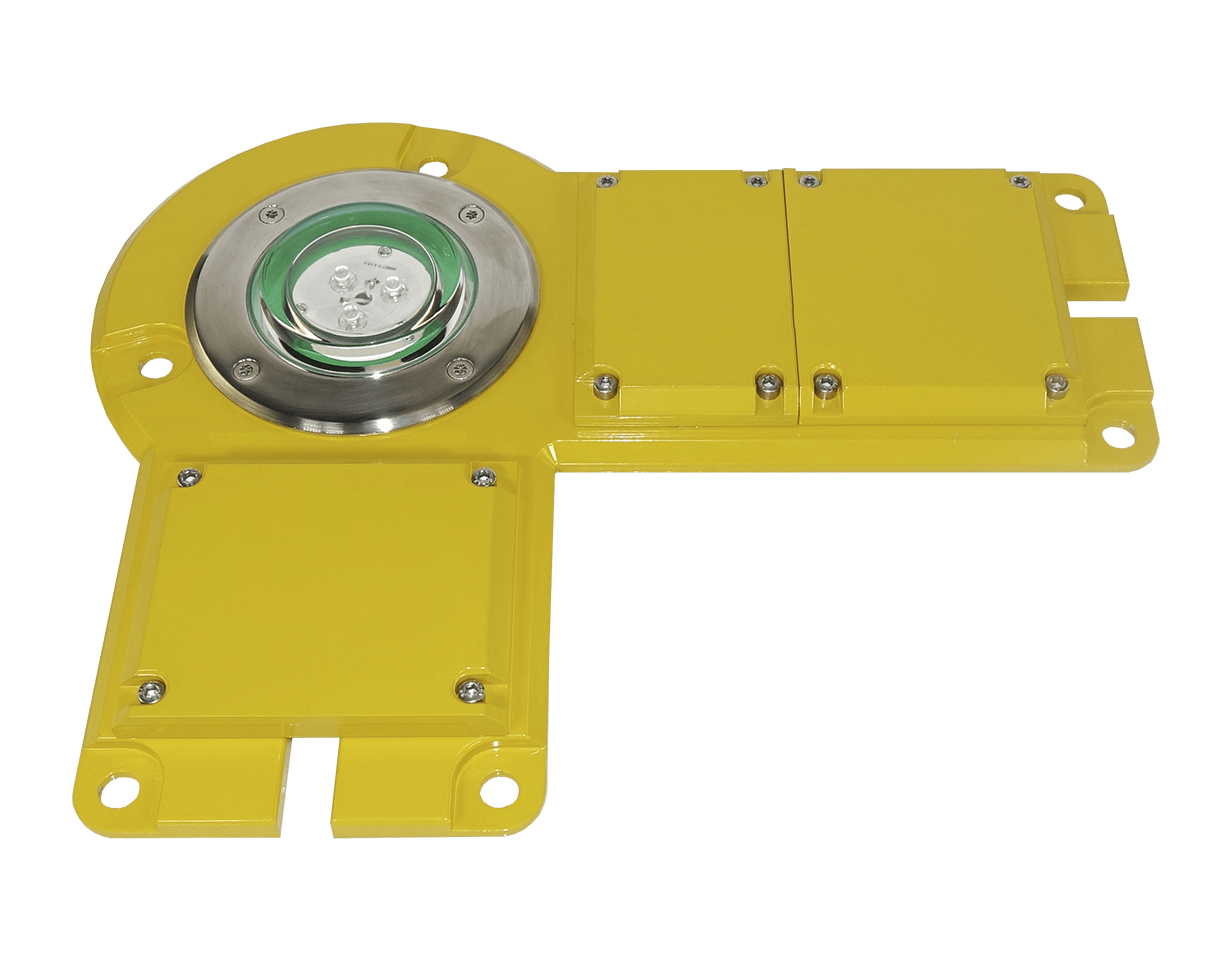

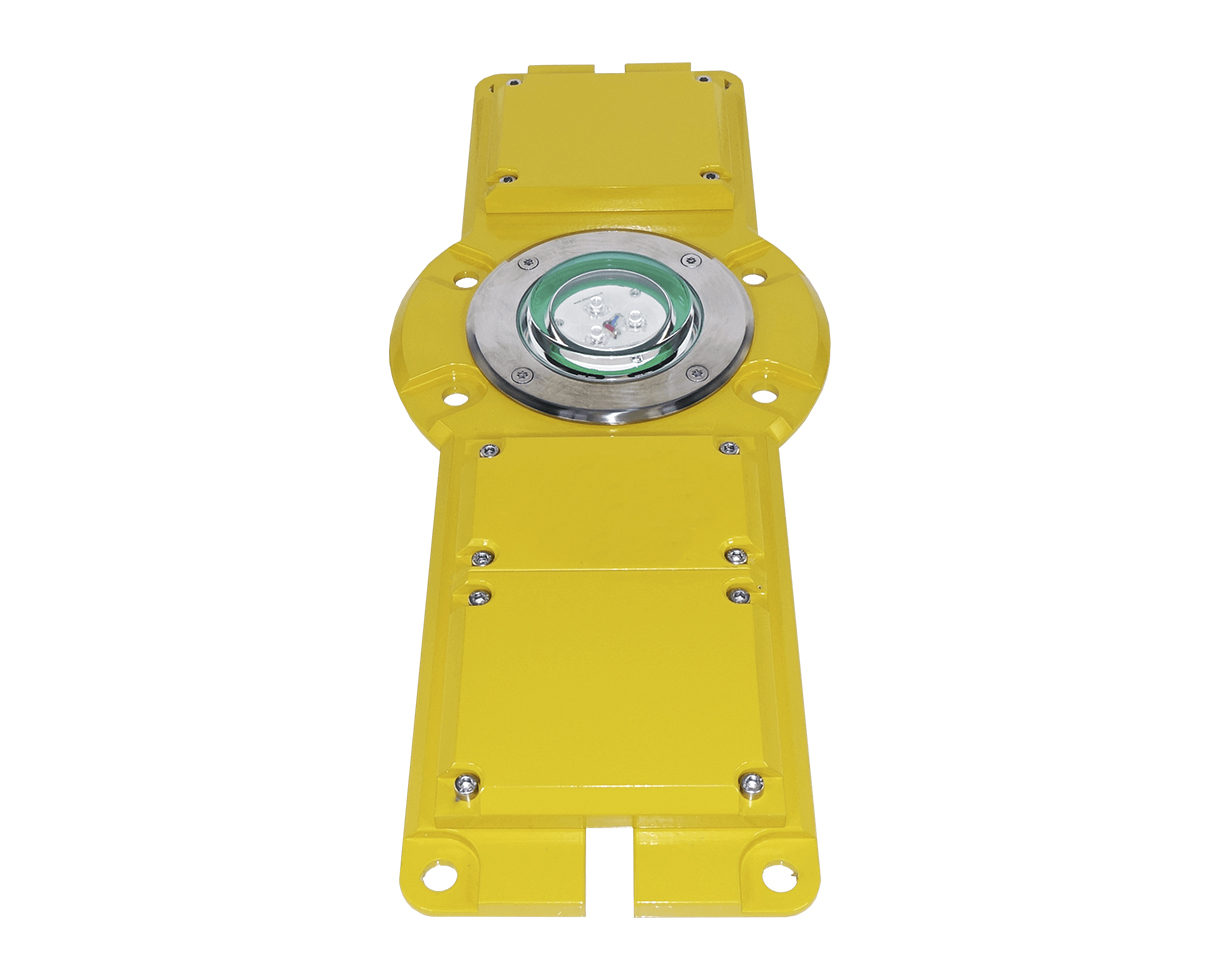

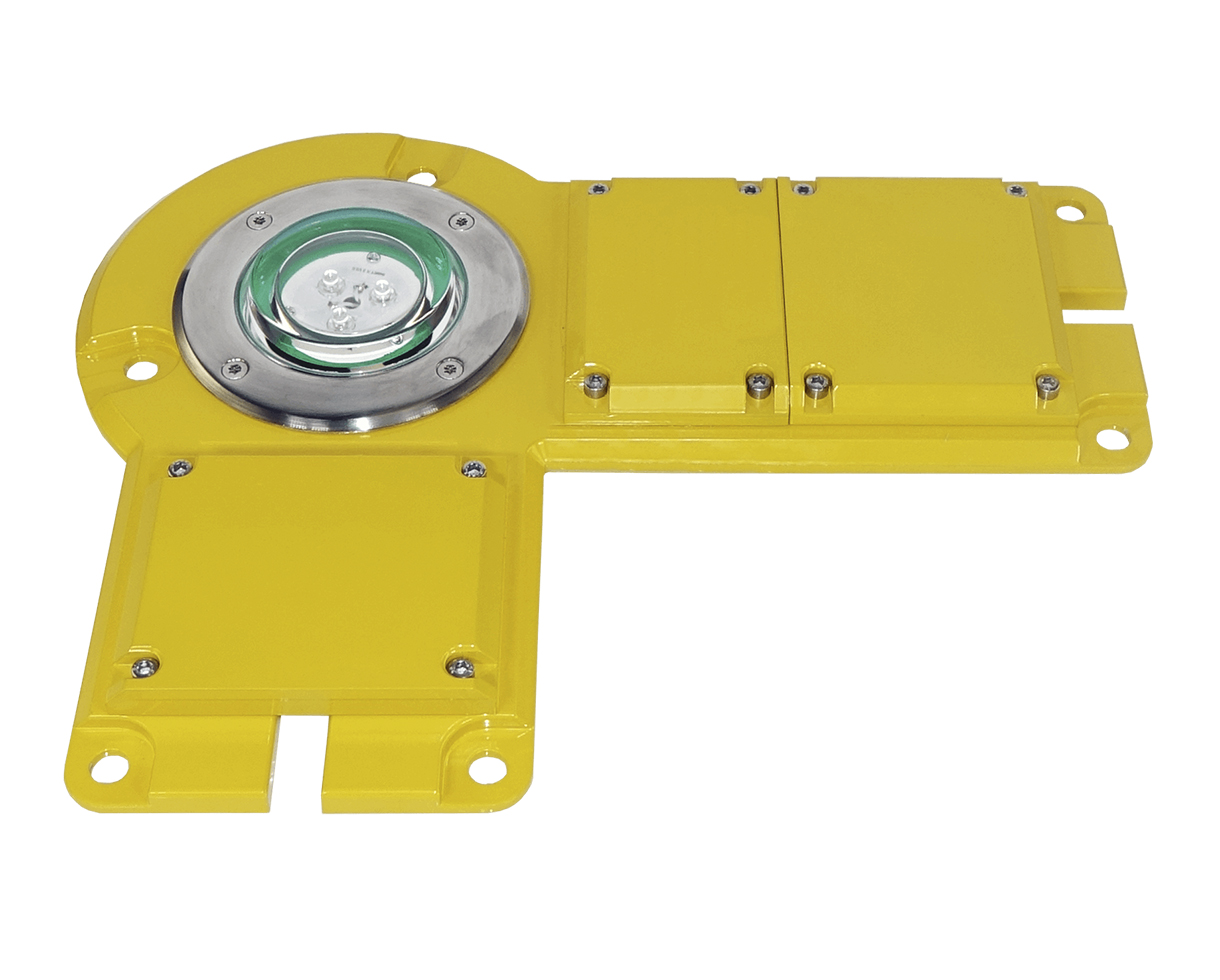

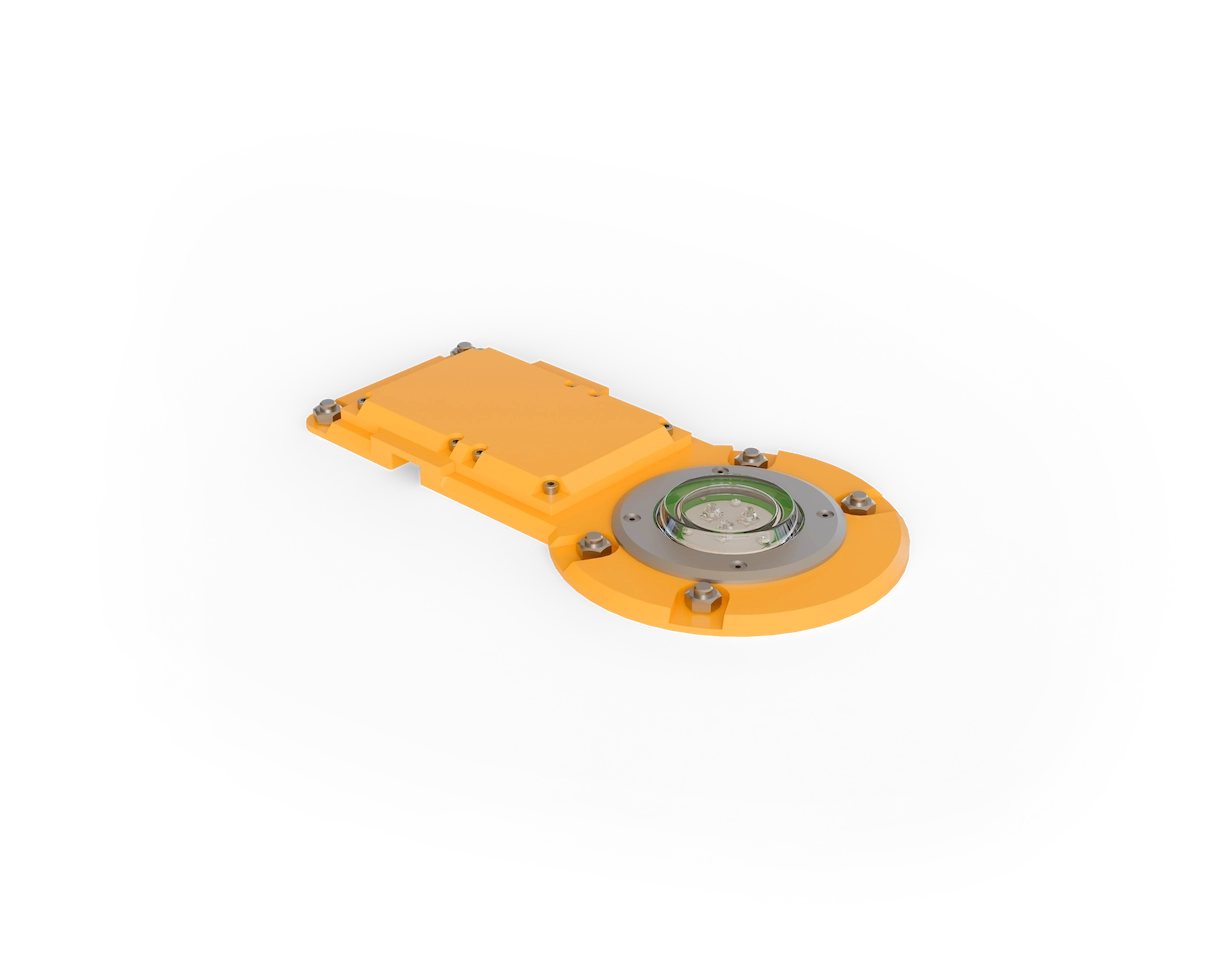

Flat Tlof-FD

Certified According to Standards:

  • ICAO Annex 14 Volume I – Aerodrome Design and Operations
  • ICAO Annex 14, Volume II – Heliports
  • IEC TS 61827: Electrical installations for lighting and beaconing of aerodromes. Characteristics of inset and elevated luminaries used on
Category ,
Product Code AL-073-03-GR-FD
Add to my list Share this page
Add to my list

Description

  • Housing powder-coated aluminium, RAL 1004 (aviation yellow)
  • Diffuser – hardened glass
  • Diffuser flange – nickel-plated ring
  • Cable gland – nickel-plated brass
  • Fasteners – stainless steel
  • Light fixtures are provided with anti condensation valve
  • Light fixtures are UV protected

Electrical Characteristics

  • Power consumption: 6W
  • Power supply: 48V DC from controller – dimmable: 100%, 30%, 10% or 90-230V, 50/60Hz – non dimmable

Flat Tlof-FD Accessories

Download Flat Tlof-FD datasheet

Datasheet PDF 493 KB Download PDF
